NVR6110E 10CH 4K UYC NVR
Key Features
*Mstar SSR621Q platform
*Support Motor vehicle, Non-motor vehicle and Human body Recognition.
*Support Cross Line, Enter Area, Leave Area Intrusion setting, Realizing Deep Intelligent Perimeter Protection
*Network video Input/Output Bandwidth:50Mbps/40Mbps
*Live Preview Capability:Up to 10 ch * 8MP/ 5MP/ 4MP/3MP/2MP
*Synchronous Playback Capability: 1ch *8MP@30, 5MP@30; 2ch* 4MP@30;4ch* 3MP@20 1080p@30; 8ch* 720p@30; 10ch*D1@30
*Support OnVif compatible with Third-party IPC
*Support Ultra 265 intelligent coding technology, Storage Space Save Half
*Support 1 x HDMI , 1 x VGA output simultaneously
*Support 1 x SATA interface, Hard Disk Max 10TB
*Support Two-way audio;
*Support Mobile APP: UYC ( IOS , Android ) , PC Client CMS/VMS:UYC Station
*Support Web side operation, SDK development; Customization(ODM, OEM), Manufacturer
Name, Model Number,Web/Channel/Boot Logo, Image scene, OSD, Default Alarm Audio
even APP Customization
*Support UPnP ( Universal Plug and Play ) , DDNS ( Dynamic Domain Name Resolution ) , DHCP ( Automatically Obtain IP Address )
Product specifications
| Product number | NVR6110E | |
| decoding | DSP | Mstar SSR621Q |
| Video decoding | Support H.265 , H.264 | |
| Decoding ability | 1 x 8MP@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@20, 4 x 1080p@30, 8 x 720p@30, 10 x D1@30 | |
| Audio decoding | G.711 | |
| Video and audio input | Number of access channels | 10 channels |
| IPC access capability | Up to 10 channels of 8MP/ 5MP/ 4MP/3MP/2MP H.265 or H.264 cameras can be fully connected | |
| Network video input bandwidth | 50 Mbps | |
| Video and audio output | HDMI output | 1 channel HDMI resolution: 1024x768/60HZ , 1280x720/60HZ , 1280x1024/60HZ , 1600x1200/60HZ , 1920x1080/50HZ , 1920x1080/60HZ , 3840X2160 / 30 HZ ( Default 1920x1080/60HZ) |
| VGA output | 1 channel VGA resolution: 1024x768/60HZ , 1280x720/60HZ , 1280x1024/60HZ , 1600x1200/60HZ , 1920x1080/50HZ , 1920x1080/60HZ ( Default 1920x1080/60HZ) | |
| Video output port description | HDMI and VGA have the same source and output at the same time | |
| Preview normal split screen | 1/4/6/8/9/10 | |
| Network video output bandwidth | 40 Mbps | |
| Live \ Playback Parameters | Live preview resolution | 8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF |
| Video resolution | 8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF | |
| Synchronous storage | 10 channel | |
| Synchronous playback capability | HD playback (main stream playback): 1 channel 8MP@ 30 frames /1 channel 5MP@ 30 frames /2 channels 4MP@ 30 frames /4 channels 3MP @20 frames /4 channels 2MP @30 frames/8ch* 720p@30/10ch*D1@30 | |
| Playback split screen | 1/4 | |
| Playback mode | Instant playback, normal playback, event playback, tag playback, external file playback, smart playback | |
| Play control mode | Frame playback, rewind, 16 times fast forward, 1/8 time slow motion, 30s forward / reverse playback | |
| Backup mode | Regular backup, video clip backup | |

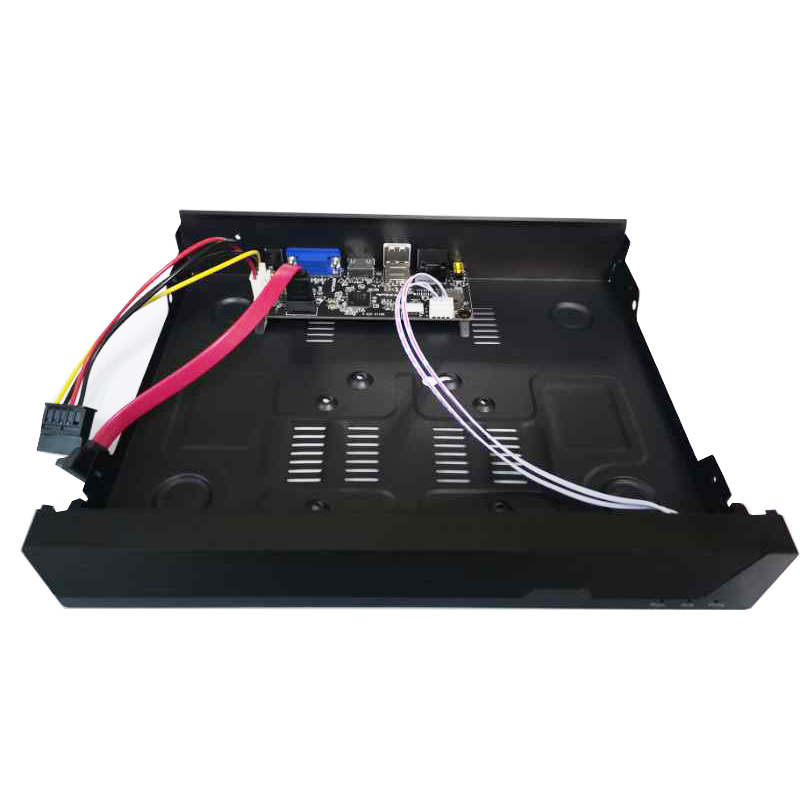

| Hard disk drive | Types of | 1 x SATA Interface |
| capacity | Each interface supports 500GB/1TB/2TB/3TB/4TB/5TB/6TB/8TB/10TB and other capacity hard disk | |
| External interface | Network port | 1 x RJ45 10M/100M adaptive Ethernet electrical port |
| USB interface | 2 x USB2.0 | |
| other | power supply | 12V DC |
| Power consumption | ≤ 3W | |
| Operating temperature | -10 ° C ~ + 55 ° C | |
| Working humidity | 10% ~ 90% (no condensation) | |
| Weight (without hard disk) | ≤ 0.7Kg | |

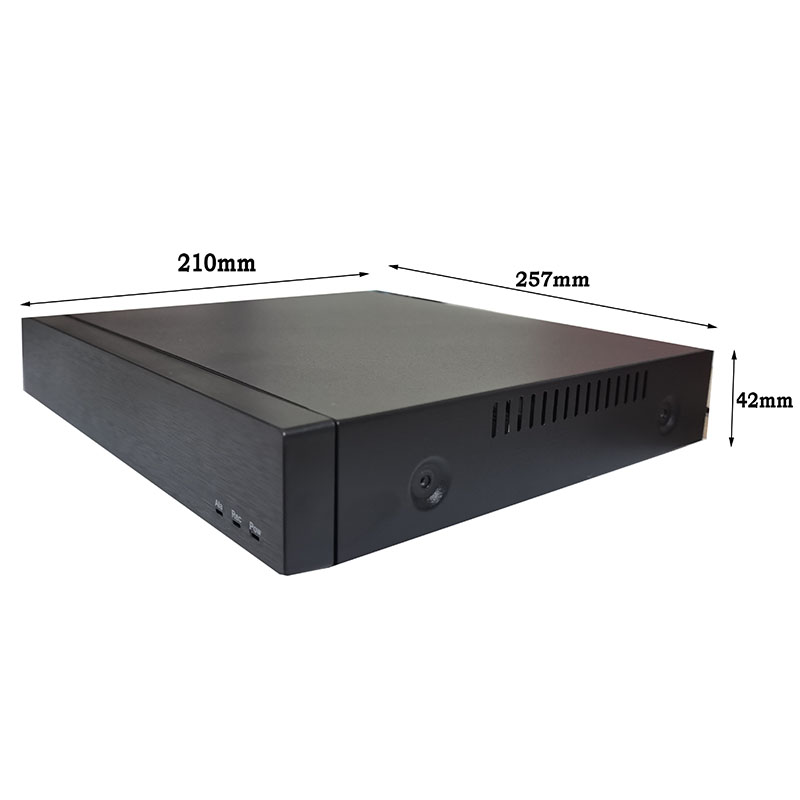

| size | 42mm (height) × 210mm (depth) × 257mm (width) | |
